Powerful PACS Workstation for Xray Modalities

Why Vision Tools OperaPro ?

The X-Ray PACS Workstation of choice

Vision Tools OperaPro is a powerful stand-alone workstation for viewing, processing and managing X-ray images and cine-loops from Floroscopy , angiography and C-ARM X-ray modalities.

Vision Tools OperaPro is a very powerful and scalable acquisition and viewing station for X-ray machines that can be connected to any type of X-ray machine whether it is dicom or non-dicom "using video or digital interface".

One of the important features of the OperaPro station is that it can convert the non-dicom X-ray into a dicom one providing huge amount of functions and facilities for image information, archiving and processing.

The OperaPro system can do Online and off line DSA "Digital Subtraction Angiography" and Road Mapping.

With its archiving capabilities, static and dynamic image viewing, variety of processing tools, printing features and reporting, the Vision Tools OperaPro application can be considered as an ideal solution for most operators.

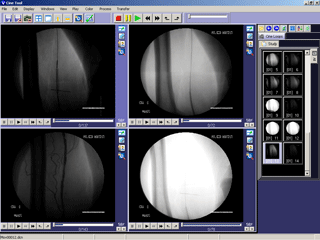

One of the important features of Vision Tools OperaPro is the capabilities to display multiple cine loops at the same time for comparison and processing. The OperaPro system can play from one cine loop to 12 cine loop per view monitor.

Each cine loop can be processed alone and a group or all the cine loops can be processed together. adding filters, changing the brightness and contrast, sharpening and smoothing, embossing, DSA, edge enhancements and many more.

Archive Management

  • Receive and archive studies from DICOM modalities using different rule-based compression and routing configurations.
  • Support DICOM Store SCP/SCU and Q/R SCP/SCU.
  • Archive/Manage studies aided by multiple search criteria and search filters to retrieve the selected studies asap.
  • Import studies from CDs or USB flash disks or other portable media.
  • Create DICOM CDs/DVDs with built in Viewer for any studies in the work list.
  • Unified Patient Jacket to have a 360 degree view of patient history, old visits, old reports and attached documents.
  • Multiple search criteria and search filters to retrieve the selected studies on the fly.
  • Scan Images from any attached film scanner and save it into current study.
  • Send studies to any other DICOM server or device.


Image Management

  • View studies in multi-monitor configuration.
  • Multi-format display with up to 35 images per monitor.
  • Do windowing, zoom/pan, annotations and multiple measurements.
  • Multiple image filters for edge enhancements, sharpen, smoothing, ...etc.


Cine Loops Management

  • View Dynamic studies with Cine-Loop features for play-back controls. zoom/pan and windowing. spacial filters can be included while playback.
  • Support for multi-frame images generated from modalities (e.g. CathLab, Echo ultrasound, Doppler Ultrasound, Angiography/ Floroscopy X-ray)
  • Cine loops processing while playing (e.g. zooming, windowing , embossing, edge enhancement, rotation, … etc.)
  • Cine export to DICOM, AVI or MPEG. Including only part of the cine
  • Snap shot images from cine loops and storing them on related studies



  • Produce fancy looking print-outs on films or papers whether on DICOM printers or normal windows printers with the ability to design free film formats and templates, print true scale images, ... etc.
  • Visual Film Designing and operation (Visual Filming on Screen, What u see is what u print).
  • Film Template Designer (Free format).
  • Visual processing of images on film (e.g. window, zoom, pan, filters, measurements, etc.) .
  • Printing Films on both A4 paper printers and DICOM printers.

Video Grabbing Interface

For Non-DICOM X-ray, the best interface will be Video grabbing, by which, the OperaPro workstation aided by a remote keypad can acquire images from the X-ray modalities one-by-one or interface the operapro station directly with the x-ray generator ready signals to acquire image or cine loops directly from the x-ray during the procedure.

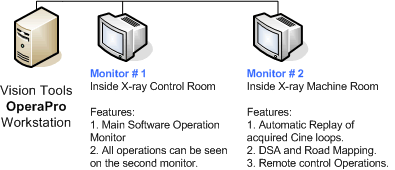

The OperaPro station can be provided with dual monitor in order to display all the operations done on the main monitor installed in the control room to a second monitor installed in the machine room it self. The second monitor can do automatic replay of the acquired cine-loop and is very useful for DSA and Road mapping functions.

Digital Subtraction Angiography " DSA "

The DSA Feature of the OperaPro workstation let the user perform Online Digital Subtraction Angiography "DSA" based on a selection of a mask image prior to activating the DSA function using the video interface.


Modality DICOM Worklist

Modality DICOM Worklist " MWL SCU "

Retreive DICOM modality worklist from any RIS / PACS server . This eliminates the need to re-insert patient information again before starting examination and acquisition . This add-on is for non-DICOM modalities in a RIS , PACS environment.

Read more »


Report with Voice Dictation

  • Built in advanced reporting tool to write reports , select from normal templates and update just the abnormalities.
  • Insert images in the report.
  • compatible with Microsoft word.
  • Voice dictation feature to dictate reports with voice to speed up the work.
  • Included Web based reporting tool with templates to ease reporting from anywhere and any device (e.g. tablets and mobiles).
