Powerful CT Modality / PACS Workstation



Powerful Viewing and Post processing Features for radiologists

Why Vision Tools CTview ?

The CT Modality / PACS Workstation of choice

Vision Tools CTView is a very powerful and scalable acquisition and viewing station for Computed Tomography "CT" modalities for archiving, publishing on CD/DVD, processing and printing of CT images.

The CTview station can be connected to any type of CT machines whether it is dicom or non-dicom "using video grabbing or ACR/NEMA interface" as one of the important features of the CTview station is that it can convert the non-dicom CT into a dicom one providing many features of image archiving and processing.

Using the Visual filming tool the user can print a complete formatted film in just view seconds to any DICOM printer or even to an A4 / A3 windows paper printers.

The CTview station can be integrated with Vision Tools 3Dview to provide colored 3D volume reconstructions.


Archive Management

  • Support DICOM Store SCP/SCU and Q/R SCP/SCU.
  • Archive/Manage studies aided by multiple search criteria and search filters to retrieve the selected studies asap.
  • Import studies from CDs or USB flash disks or other portable media.
  • Create DICOM CDs/DVDs with built in Viewer for any studies in the work list.
  • Multiple search criteria and search filters to retrieve the selected studies on the fly.
  • Scan Images from any attached film scanner and save it into current study.
  • Send studies to any other DICOM server or device.


Image Management

  • View studies in multi-monitor configuration with automatic/manual hanging-protocols for comparison.
  • Do windowing, zoom/pan, annotations, multiple measurements including density and true scale viewing.
  • Process scan-lines, pilot images, cross reference lines and triangulation for CT studies.
  • CT number measurements including region identification.
  • Spine Labeling (vertebrae Annotation).
  • Full support for enhanced CT studies.
  • Support for CT 2D triangulation.
  • Advanced MPR/MIP for orthogonal, multi-oblique, curved, cross curved and spiral reconstruction of CT studies.
  • On the fly 2D and 3D Triangulation for CT studies.
  • Generate new slices from different angles Snap and save them to new series with just one button click.



  • Produce fancy looking print-outs on films or papers whether on DICOM printers or normal windows printers with the ability to design free film formats and templates, print true scale images, ... etc.
  • Visual Film Designing and operation (Visual Filming on Screen, What u see is what u print).
  • Film Template Designer (Free format).
  • Visual processing of images on film (e.g. window, zoom, pan, filters, measurements, etc.) .
  • Printing Films on both A4 paper printers and DICOM printers.

Video Grabbing Interface

For Non-DICOM CT, the best interface will be Video grabbing, by which, the CTview workstation aided by a remote keypad can acquire images from the CT modalities one-by-one.

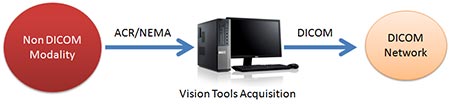

ACR/NEMA Interface **

MILLENSYS Xlink gateway is a system that accepts ACR/NEMA 1.0 images [Raw Data] from any Toshiba X-Series CT Scanner [Xpeed, Xvision, Xpress, ....] and Toshiba MRI [FlexArt, VisArt, ExcelArt,...] transferred using the [Xlink] protocol and convert it to DICOM 3.0 format and  insert the patient study in Vision Tools system directly in a transparent way. The solution is very innovative in that Toshiba X-Series machines only transfer images using ACR/NEMA 1.0 format, this format is no longer supported by newer DICOM 3.0 compatible stations.


  • No need to use frame grabber cards to grab the images from the modalities [no raw data only 8 bit].
  • All images converted with our MiXlink gateway uses all the resolution of the raw data [12 bit, 16 bit]
  • The system accepts multi CT modalities connected to the same MiXlink station

** Interface available only for Toshiba Non-DICOM CT, MRI, NM Modalities

MPR / MIP **

  • Orthogonal MPR , multi-oblique MPR , Curved MPR , Cross curved MPR , Circular MPR
  • Thin/Thick Slab MIP “Minimum and Maximum Intensity Projection” with customized selection of processing region
  • MIP mode supports MinIP, MaxIP, Average.
  • Generate new series with customized slice thickness and no. of slices.
  • Save generated series to current study.
  • Interactive Triangulation.

Advanced 3D Visualization and analysis **

Advanced 3D reconstruction for CT, PET/CT studies can be applied ,with multiple features for volume reconstruction , vessel analysis, virtual colonography, calcium scoring and PET/CT fusion

Read more »

Modality DICOM Worklist

Modality DICOM Worklist " MWL SCU "

Retreive DICOM modality worklist from any RIS / PACS server . This eliminates the need to re-insert patient information again before starting examination and acquisition . This add-on is for non-DICOM modalities in a RIS , PACS environment.

Read more »

Report with Voice Dictation

  • Built in advanced reporting tool to write reports , select from normal templates and update just the abnormalities.
  • Insert images in the report.
  • compatible with Microsoft word.
  • Voice dictation feature to dictate reports with voice to speed up the work.
  • Included Web based reporting tool with templates to ease reporting from anywhere and any device (e.g. tablets and mobiles).
