 Dicom Print Servers
Dicom Print Server
Dicom Print Server is a module that converts any received image from any modality with only dicom print option enabled to dicom image file, thus enabling storing it to PACS, archive it on CD/DVD , print it to any windows A4 printer and transmit it to internet for teleradiology.
Some dicom modalities have only the dicom print option enabled while dicom Store and other options are disabled by default and require a lot to activate it from the manufacturer. This is an advantage to the dicom print server. |
 |
|
Native Dicom Converters for Toshiba non-dicom CT, MRI, NM
| |
Dicom Print Converter for Toshiba non-dicom MRI and NM
 Keni2dicom Connectivity

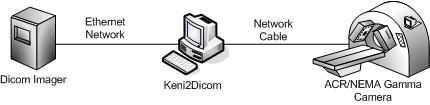

Keni2Dicom print gateway is a system that accepts ACR/NEMA 2.0 images from any Toshiba MRI [Flexart, Visart, etc...] or Toshiba Gamma Camera Machines and prints the received images directly to any Dicom Printers [wet or dry]. The solution is very innovative in that Toshiba MRI and NM machines only print images using ACR/NEMA 2.0 format, this format is no longer supported by newer DICOM 3.0 compatible printers |
|
|
Dicom Converter for Toshiba XVision and X-Press non-dicom CT
MiXink Connectivity

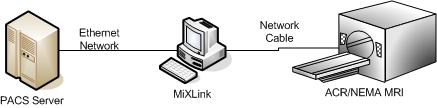

MILLENSYS Xlink gateway is a system that accepts ACR/NEMA 1.0 images [Raw Data] from any Toshiba X-Series CT Scanner [Xpeed, Xvision, Xpress, ....] and Toshiba MRI [FlexArt, VisArt, ExcelArt,...] transferred using the [Xlink] protocol and convert it to DICOM 3.0 format and insert the patient study in Vision Tools system directly in a transparent way. The solution is very innovative in that Toshiba X-Series machines only transfer images using ACR/NEMA 1.0 format, this format is no longer supported by newer DICOM 3.0 compatible stations.
Advantages
- No need to use frame grabber cards to grab the images from the modalities [no raw data only 8 bit].
- All images converted with our MiXlink gateway uses all the resolution of the raw data [12 bit, 16 bit]
- The system accepts multi CT modalities connected to the same MiXlink station
|
|
|
Dicom Converter for Toshiba Flexart and Visart non-dicom MRI
MiXink Connectivity
MILLENSYS Xlink gateway is a system that accepts ACR/NEMA 1.0 images [Raw Data] from any Toshiba X-Series CT Scanner [Xpeed, Xvision, Xpress, ....] and Toshiba MRI [FlexArt, VisArt, ExcelArt,...] transferred using the [Xlink] protocol and convert it to DICOM 3.0 format and insert the patient study in Vision Tools system directly in a transparent way. The solution is very innovative in that Toshiba X-Series machines only transfer images using ACR/NEMA 1.0 format, this format is no longer supported by newer DICOM 3.0 compatible stations.
Advantages
- No need to use frame grabber cards to grab the images from the modalities [no raw data only 8 bit].
- All images converted with our MiXlink gateway uses all the resolution of the raw data [12 bit, 16 bit]
- The system accepts multi CT modalities connected to the same MiXlink station
|
|
|
Dicom Converter for Toshiba Auklet non-dicom CT
MiTOS Connectivity

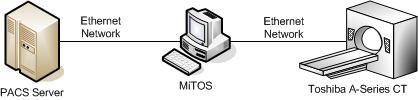

MILLENSYS MiTOS Software is a system that accepts ACR/NEMA 1.0 images [Raw Data] from any Toshiba A-Series CT Scanner [Auklet, Asteion, Aquilion, ...] and convert it to DICOM 3.0 format and insert the patient study in Vision Tools system directly in a transparent way. The solution is very innovative in that it is much cheaper than Toshiba A-Series DICOM option and more featured.
Advantages
- No need to use frame grabber cards to grab the images from the modalities [no raw data only 8 bit].
- All images converted with our MiTOS gateway uses all the resolution of the raw data [12 bit, 16 bit]
|
|
|
|
